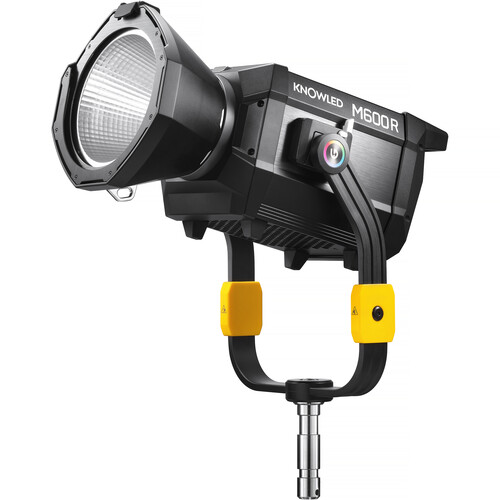

Godox KNOWLED M600R RGB LED Monolight

Godox KNOWLED M600R RGB LED Monolight

 191,687

Key Features
  • For Studio & Film/TV Production
  • Output: 136,000 Lux at 3.3′ w/ Reflector
  • 1800-10,000K CCT; Full RGB Color Control
  • Onboard, DMX, CRMX & App Control
  • Art-Net & sACN Ethernet Control
  • Fan Cooled
  • Bowens Mount
  • IP54 Rated
  • Includes Control Box
  • Includes Power Cable & Soft Case

1 in stock

Compare
SKU: BFEGM600R Category: Brand:

Godox M600R Overview

Exceptional Color Fixture
Designed to withstand demanding filming environments, the KNOWLED M600R RGB LED Monolight from Godox is a robust 600W fixture with full RGBWW color that gives you complete control over its operation. The M600R features advanced connectivity options, silent operation, 1800-10,000K CCT, and an IP54 rating to stand up to wet weather conditions. Users can easily access a range of 14 lighting effects to achieve different looks or modify the fixture thanks to its widely compatible Bowens front accessory mount. Made with flexibility in mind, lighting technicians will appreciate a 26.2′ long power cable that facilitates installation and positioning on set. Godox also includes a soft case for storage and transportation.

High Brightness
The M600R outputs up to 136,000 lux at a distance of 3.3′ in 5600K using its included 45° reflector.
Professional Connectivity
A variety of control methods allow you to adjust and control your light effortlessly and simplify your workflow. Control the fixture onboard, via app, or with wired DMX. Wireless control is also possible via LumenRadio CRMX or Ethernet, which supports the Art-Net and sACN protocols.
Silent Waterproof Fan
Godox introduces an air cooling system with a waterproof cooling fan that ensures reliable performance in temperatures as low as -4°F.
Widely Compatible Bowens Mount
The M600R is configured to accept optional Bowens mount light modifiers that will give you complete control of the light output. This includes the brand’s Fresnel.
IP54 Rating
Rated IP54 for weather resistance, the light and its control box can withstand dust, water splashes, rain, fog, or other types of extreme weather.
Upgraded Optical Technology
To effectively manage temperature while maintaining the quality of light, the M600R incorporates an upgraded optical technology that extends its lifespan.
Other Details
  • Flicker-free operation
  • High CRI/TLCI scores of 96 for color accuracy
  • 0-100% dimming
  • Linear, S-curve, exponential, and logarithmic dimming curves
  • Green/Magenta adjustments
  • Firmware upgrades via USB-A port

Godox KNOWLED M600R RGB LED Monolight

Godox M600R Specs

Key Specs
Item Type
1x LED Monolight
Included Light Modifier
1x Reflector
Included Storage Case
Yes
Photometrics
45° at 3200K:
9364 fc / 100,800 Lux at 3.3′ / 1 m (with Reflector)*
1040 fc / 11,200 Lux at 9.8′ / 3 m (with Reflector)
367 fc / 3960 Lux at 16.4′ / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance
45° at 5600K:
12,634 fc / 136,000 Lux at 3.3′ / 1 m (with Reflector)
1198 fc / 12,900 Lux at 9.8′ / 3 m (with Reflector)
422 fc / 4550 Lux at 16.4′ / 5 m (with Reflector)

Color Temperature
1800 to 10,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
App-Controlled / Controller Included / DMX (Continuous)
 • 0 to 100%
Front Accessory Mount
Bowens S
Wireless Remote Control Type
Bluetooth
Wireless CRMX
Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included)

Battery
1x Battery Power Station, 48 VDC (Not Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
720 W (Maximum)
Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)
Light Fixture
Item Type
1x LED Monolight
Included Light Modifier
1x Reflector
Included Storage Case
Yes
Photometrics
45° at 3200K:
9364 fc / 100,800 Lux at 3.3′ / 1 m (with Reflector)*
1040 fc / 11,200 Lux at 9.8′ / 3 m (with Reflector)
367 fc / 3960 Lux at 16.4′ / 5 m (with Reflector)

*Standardized Measurement Calculated Internally Based on Closest Distance
45° at 5600K:
12,634 fc / 136,000 Lux at 3.3′ / 1 m (with Reflector)
1198 fc / 12,900 Lux at 9.8′ / 3 m (with Reflector)
422 fc / 4550 Lux at 16.4′ / 5 m (with Reflector)

Color Temperature
1800 to 10,000K
Color Modes
RGB, Daylight, Tungsten
Color Accuracy Standard
CRI 96
TLCI 96
Dimming
App-Controlled / Controller Included / DMX (Continuous)
 • 0 to 100%
Cooling System
Fan
Beam Angle
45° with Included Reflector
Built-In Flash
No
Umbrella Mount
No
Front Accessory Mount
Bowens S
Connectivity
Wireless Remote Control Type
Bluetooth
Wireless CRMX
Mobile App Compatible
Yes: Android & iOS
Functionality: Remote Control
Wireless Channels
No
Wireless Groups
No
Wireless Range
131.2′ / 40 m (Bluetooth)
Power & I/O
Power Source
AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Battery (Not Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs
Light Fixture
1x Unspecified 3-Pin Power Input
Power Supply/Controller
1x Unspecified 3-Pin Power Output
1x XLR 5-Pin Male DMX Input
1x XLR 5-Pin Female DMX Output
1x powerCON AC Power Input
1x XLR 3-Pin Male Power Input (48 VDC)
1x RJ45 Female Network Input
1x USB-A Female Service Input
Battery
1x Battery Power Station, 48 VDC (Not Included)
Input Power
100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable
1x Unspecified 3-Pin to Unspecified 3-Pin Cable
1x USA Type-A/B Plug to powerCON Cable
Inline Switch
No
Power Pass-Thru
No
Power Consumption
720 W (Maximum)
Mounting
Yoke Type
Manually-Operated Yoke
Fixture Mounting
1x 1-1/8″ Stud (Via Yoke Mount)
General
Display
Yes
Environmental Resistance
Dust/Water-Resistant (IP54)
Operating Conditions
-4 to 113°F / -20 to 45°C
Certifications
FCC
Dimensions
19.72 x 13.66 x 12.48″ / 50.09 x 34.7 x 31.7 cm (Fixture with Yoke)
13.15 x 7.44 x 6.54″ / 33.4 x 18.9 x 16.61 cm (Power Supply/Controller)
Weight
22 lb / 10 kg (Fixture with Reflector/Yoke)
13.2 lb / 6 kg (Power Supply/Controller)
Packaging Info
Package Weight
65 lb
Box Dimensions (LxWxH)
31.75 x 18.5 x 13″

Additional Information

Weight 30 kg
Dimensions 80.64 × 47 × 33 cm
