BOYA BY-WM8 PRO-K1 MICROPHONE
₹ 9,313
Key Features
- Dual-Channel Wireless Receiver
- 1 x Wireless Bodypack Transmitter
- 1 x Omnidirectional Lavalier Microphone
- 48 Selectable UHF Channels
5 in stock
CompareBOYA BY-WM6-II Overview
The BY-WM8 Pro-Kit 1 UHF Dual-Channel Wireless Lavalier System from BOYA includes a UHF dual-channel wireless receiver, a wireless bodypack transmitter, an omnidirectional lavalier microphone, a microphone clip, a foam windscreen, a shoe mount adapter, a 3.5mm to XLR output cable, and a 3.5mm to 3.5mm output cable. This wireless system can be used to capture audio from one subject for electronic news gathering (ENG), electronic field production (EFP), film, business, and educational applications.
Featuring an easy-to-read LCD display, wide switching RF bandwidth, PLL-synthesized tuning, and digital companding circuitry, the BY-WM8 Pro-Kit 1 system is equipped with 48 selectable UHF channels and offers broadcast-quality sound. Other features include selectable stereo and mono modes on the dual-channel receiver, a mute function, LCD-locked function, receiver headphone output for monitoring, and 300′ operation range.
Furthermore, the system is powered by AA batteries (sold separately), which offer up to 6 hours of continuous operation. The BY-WM8 Pro-Kit 1 UHF Dual-Channel Wireless Lavalier System is built with easy and flexible wireless synchronization between transmitter and receiver via infrared, so you will always find a clear channel to transmit on. The user-friendly LCD menu screen is quick and easy to navigate, which makes it suitable for quick, clear, and easy operation.
The BOYA BY-WM8 Pro-K2 is an upgrated UHF Dual-Channel Wireless Microphone System for capturing audio with dual subjects, features an easy-to-read LCD display, a wide switching RF bandwidth, PLL-synthesized tuning and digital companding circuitry.
The package is suitable for a wide range of wireless applications such as interviews, electronic news gathering (ENG), electronic field productions (EFP), film production, business and educational applications, and more.
The BY-WM8 Pro-K2 system consists of two bodypack transmitters, a camera-mount receiver, and two omnidirectional lavalier microphones. Also included with this system is a shoe-mount adapter, a single 1/8″ to XLR output cable, a single 1/8 to 1/8″ output cable, carrying case.
The receiver is built with mic and headphone output jacks. The bodypack transmitter includes a MIC jack and LINE IN jack.
Product Highlights:
• Dual-Channel Wireless Receiver
• 48 Selectable UHF Channels
• Broadcast-Quality Sound
• Includes Two Transmitters and One Receiver
• Seletable Stereo and Mono Mode
• Mic and Line-in
• Selectable Mute function
• Easy-to-read LCD displays
• Automatic LCD-locked Function
• Monitoring sound by headphone output (Receiver)
• More than 6 Hours Continuous Operation
• Operation range can reach up to 100m(300′) (without obstacle)
• Two AA batteries for both transmitter and receiver ( battery/tripod not included)

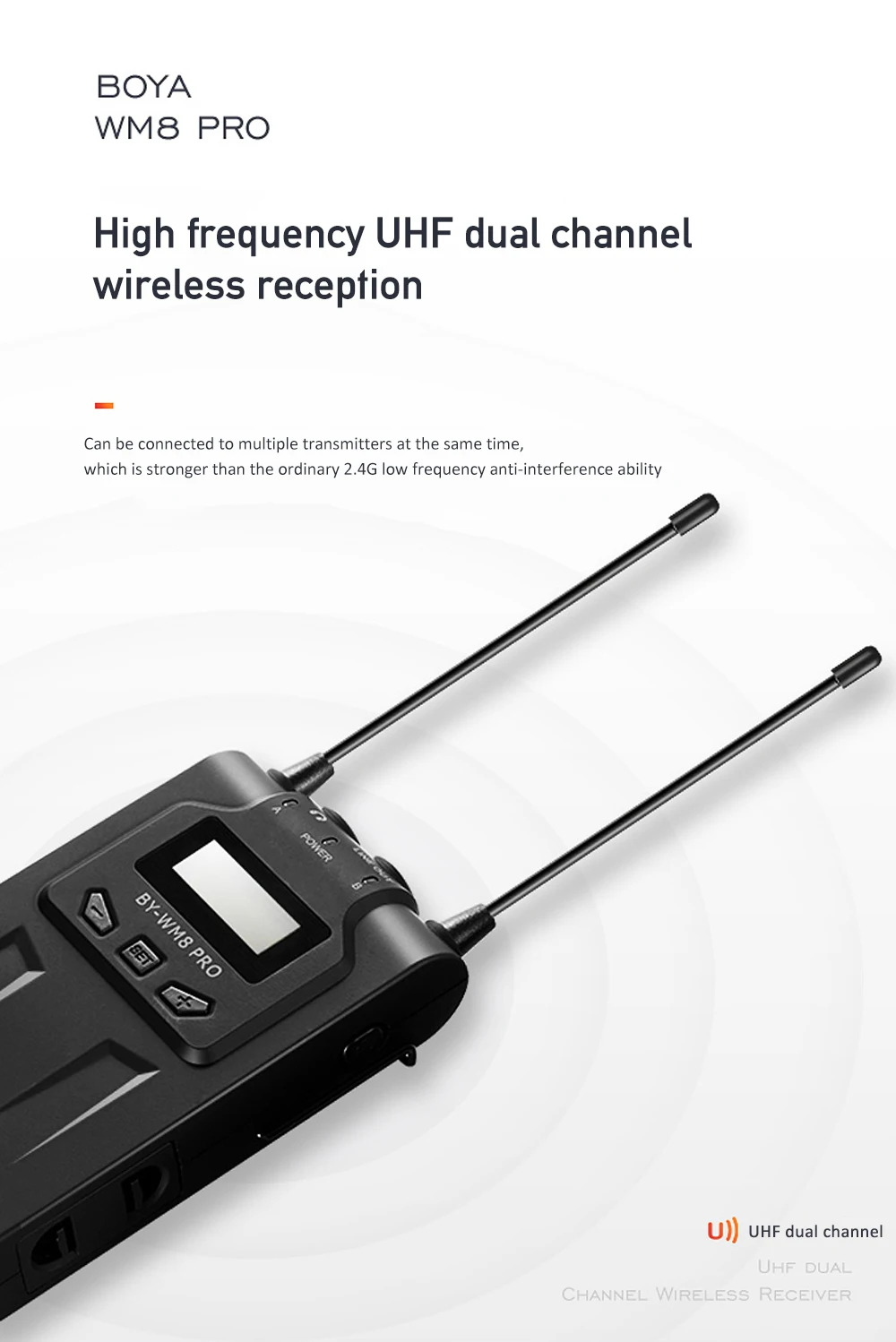

High frequency UHF dual channel wireless reception
Can be connected to multiple transmitters at the same time,which is stronger than the ordinary 2.4G low frequency anti-interference ability

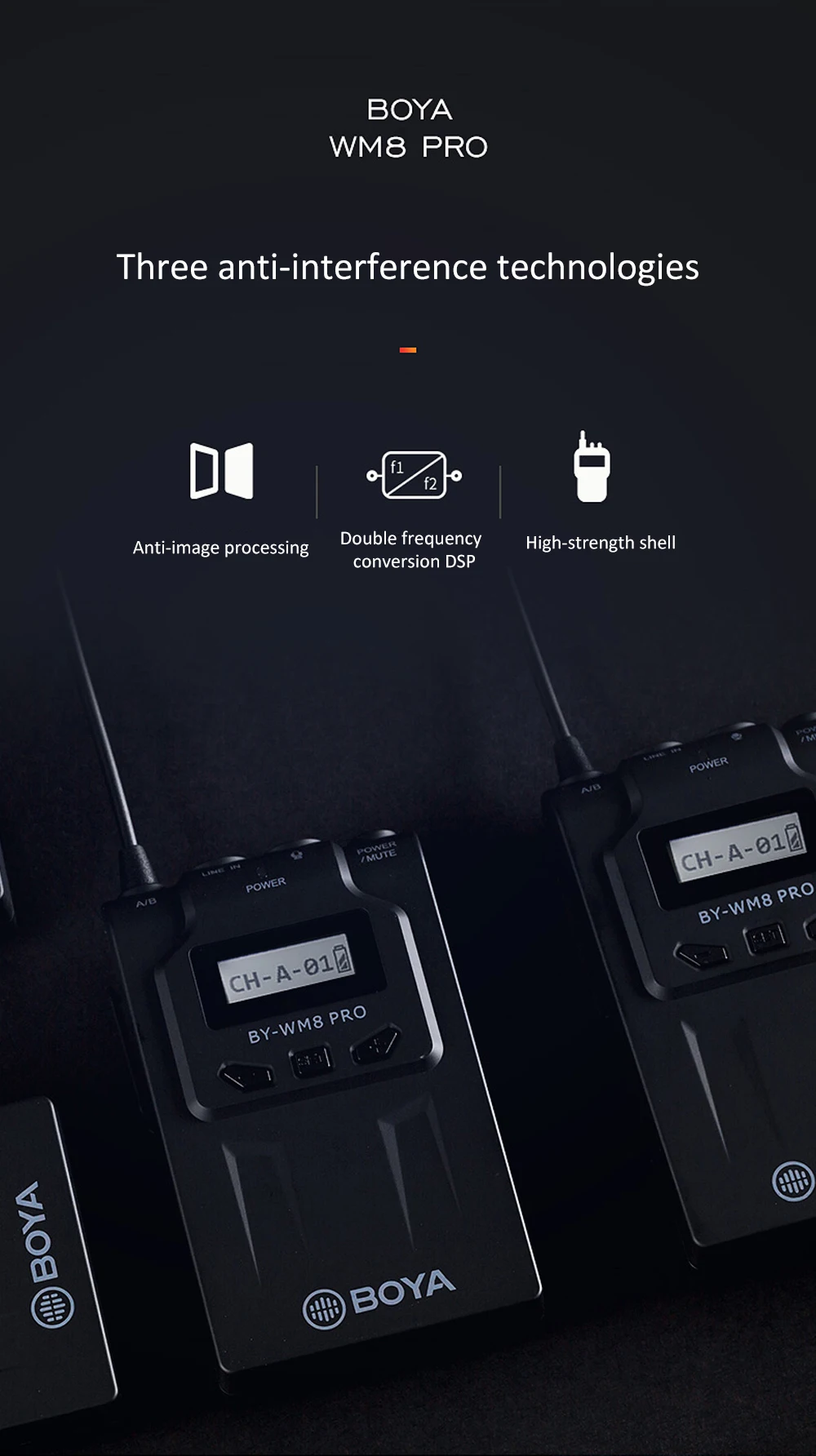

Three anti-interference technologies

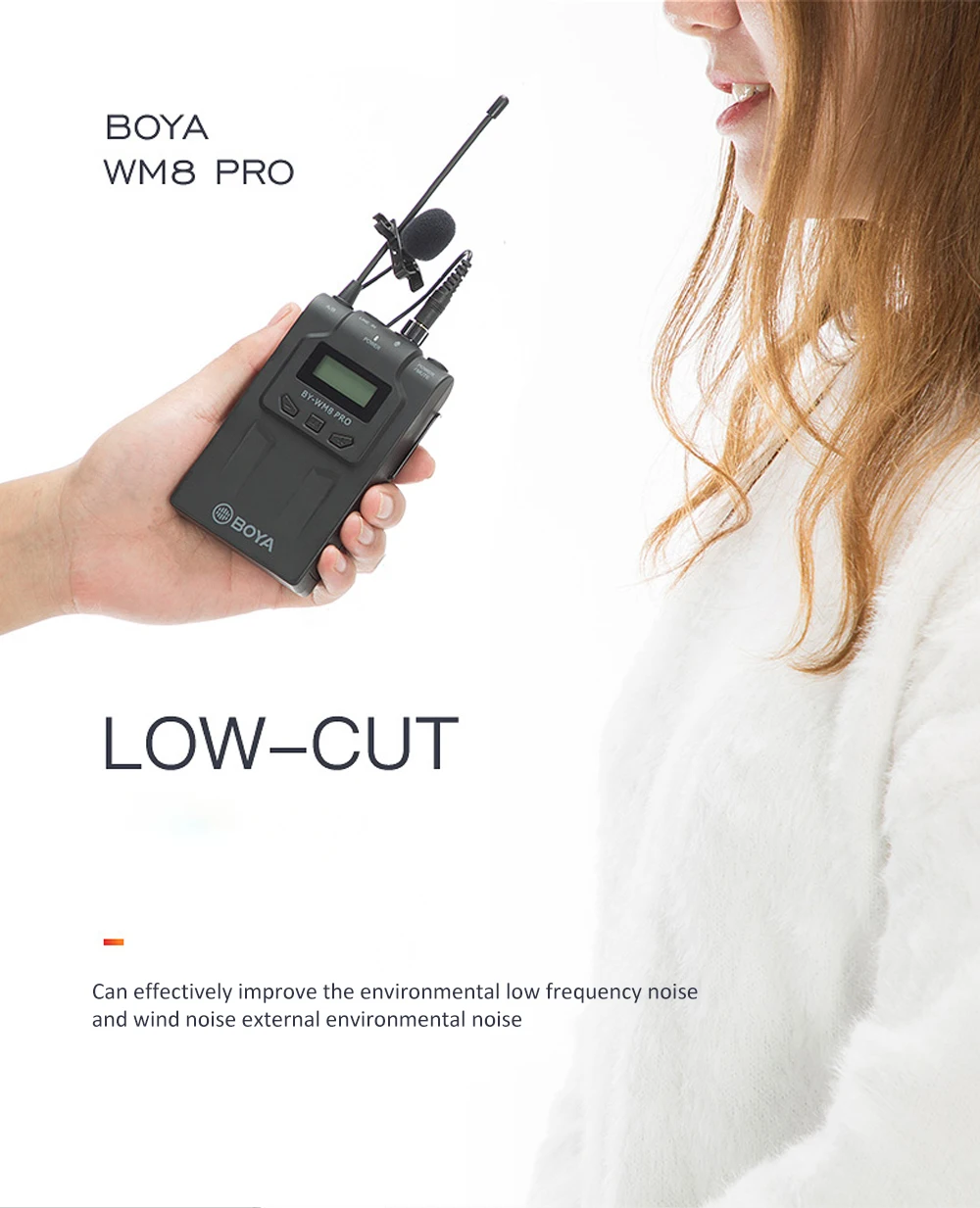

Can effectively improve the environmental low frequency noise and wind noise external environmental noise

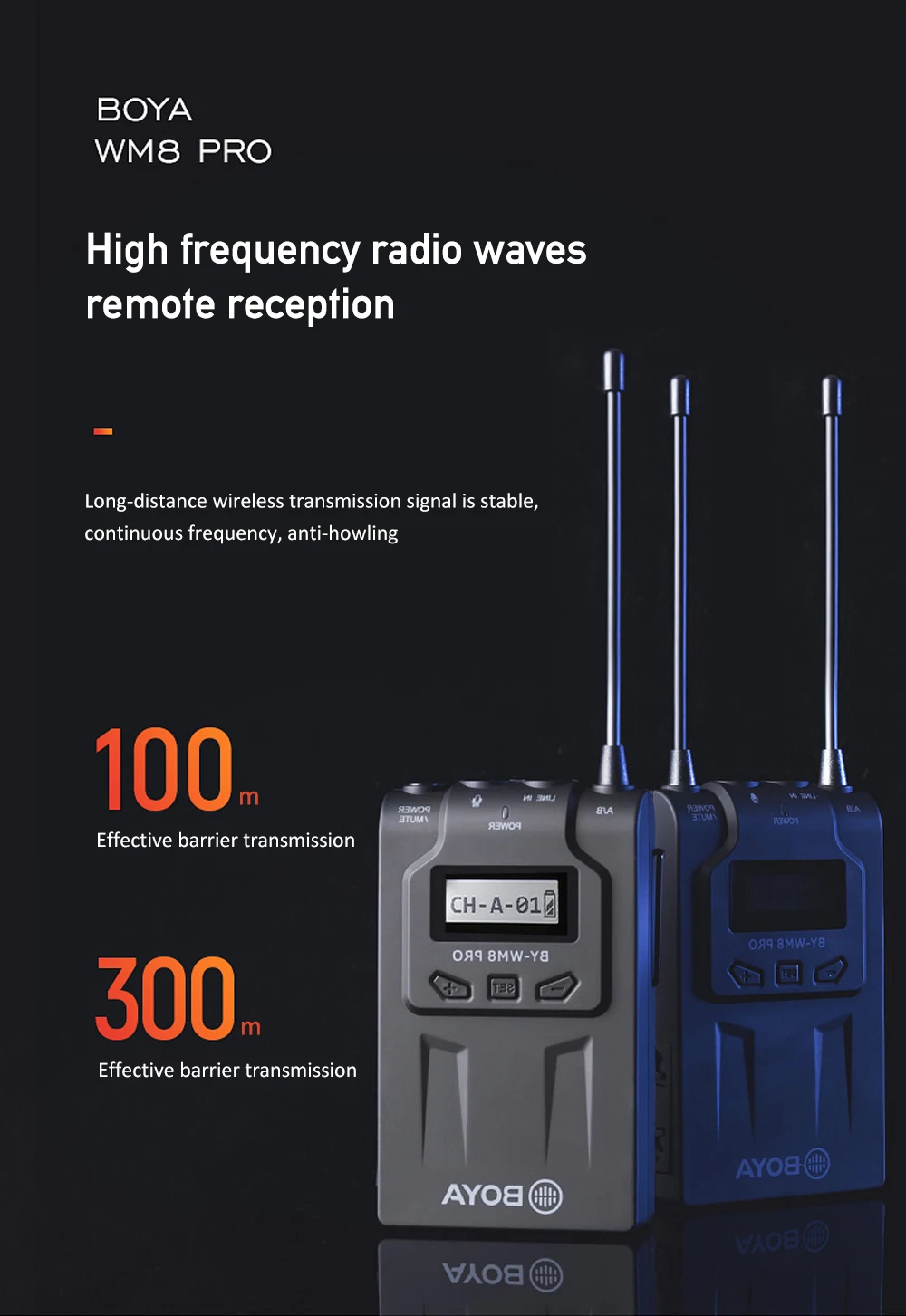

High frequency radio waves remote reception
Long-distance wireless transmission signal is stable, continuous frequency, anti-howling

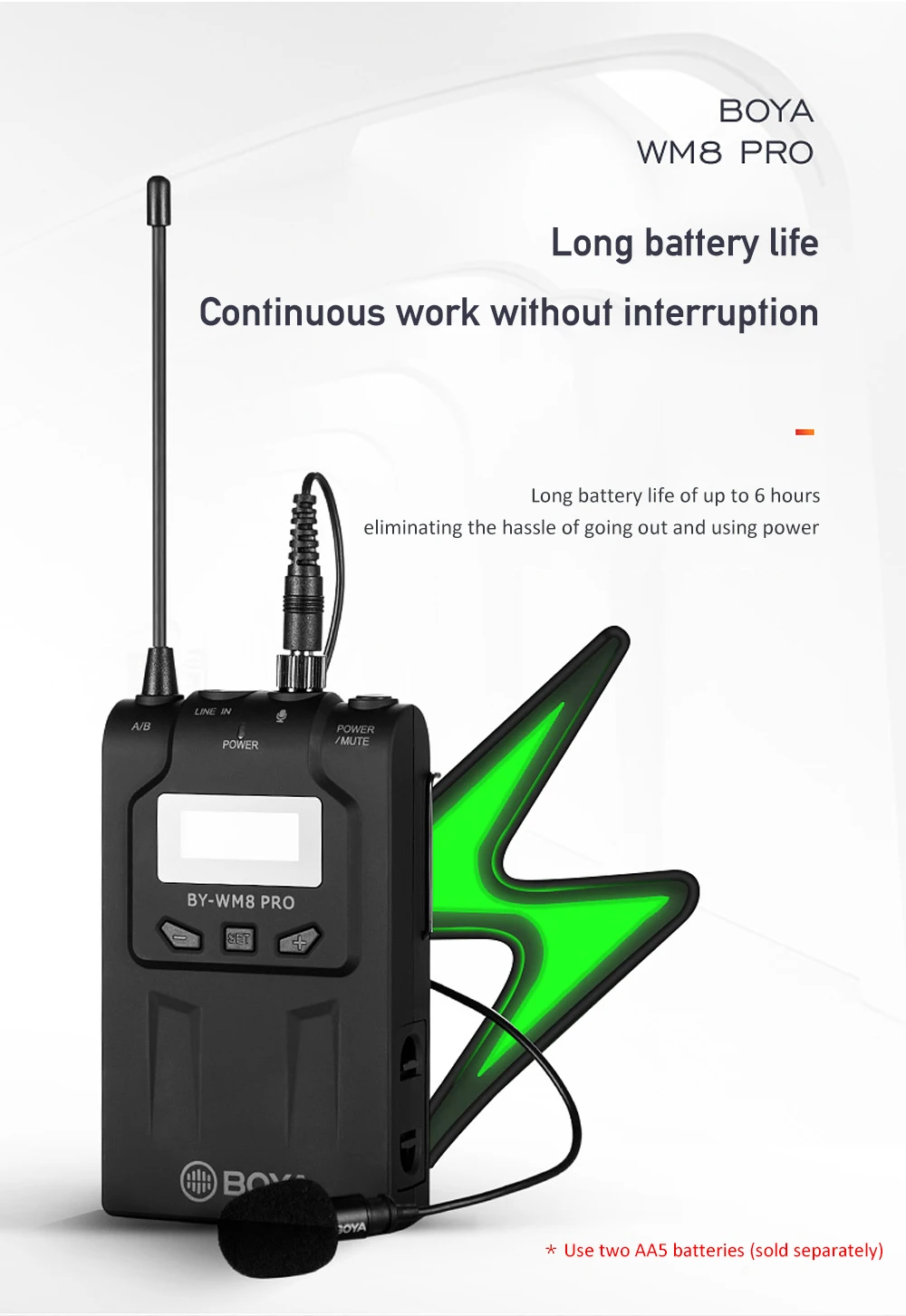

Long battery life up to 6 hours
continuous work without interruption

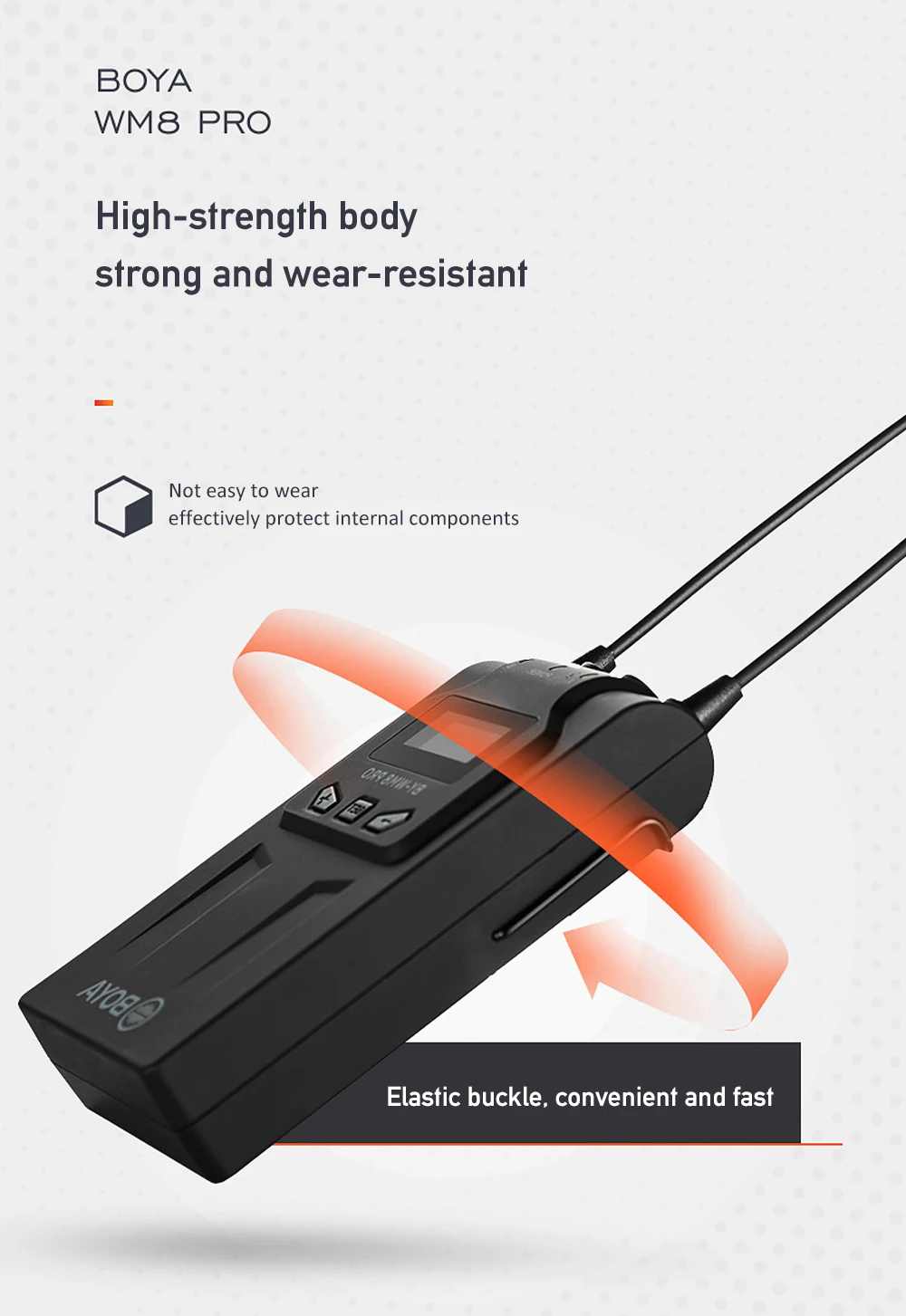

High-strength body
strong and wear-resistant
Not easy to wear
effectively protect internal components

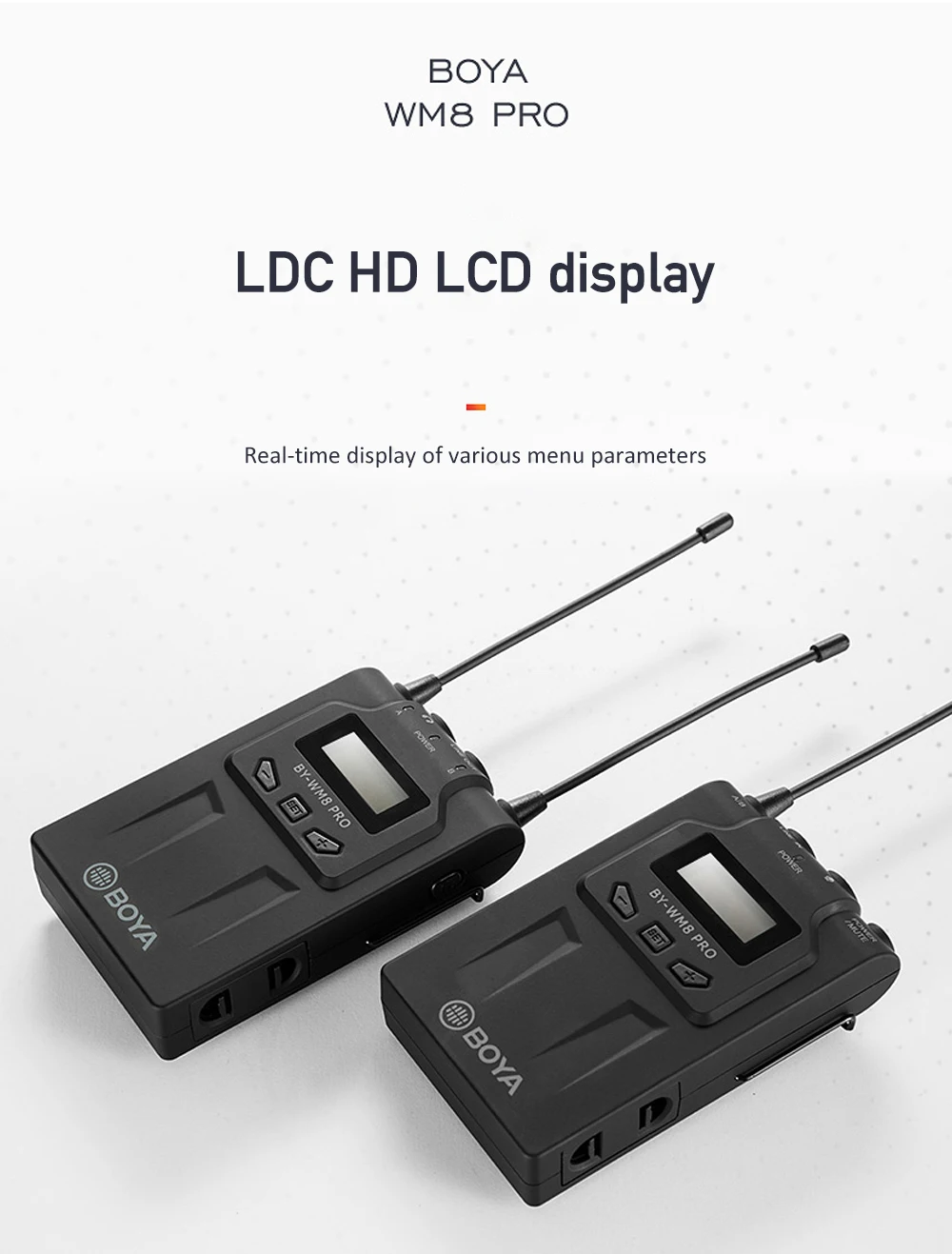

Real-time display of various menu parameters

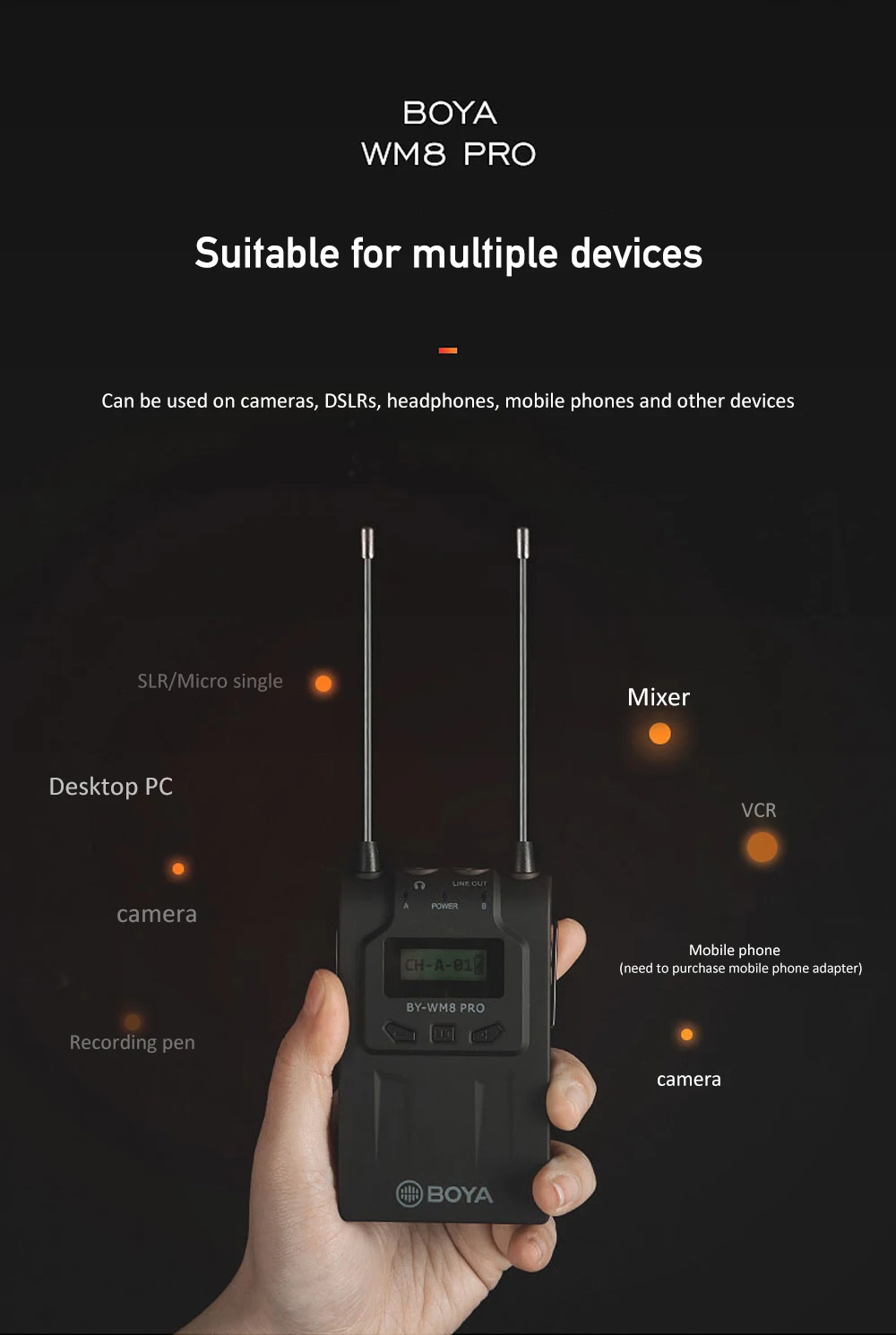

Suitable for multiple devices
Can be used on cameras, DSLRs, headphones, mobile phone and other devices

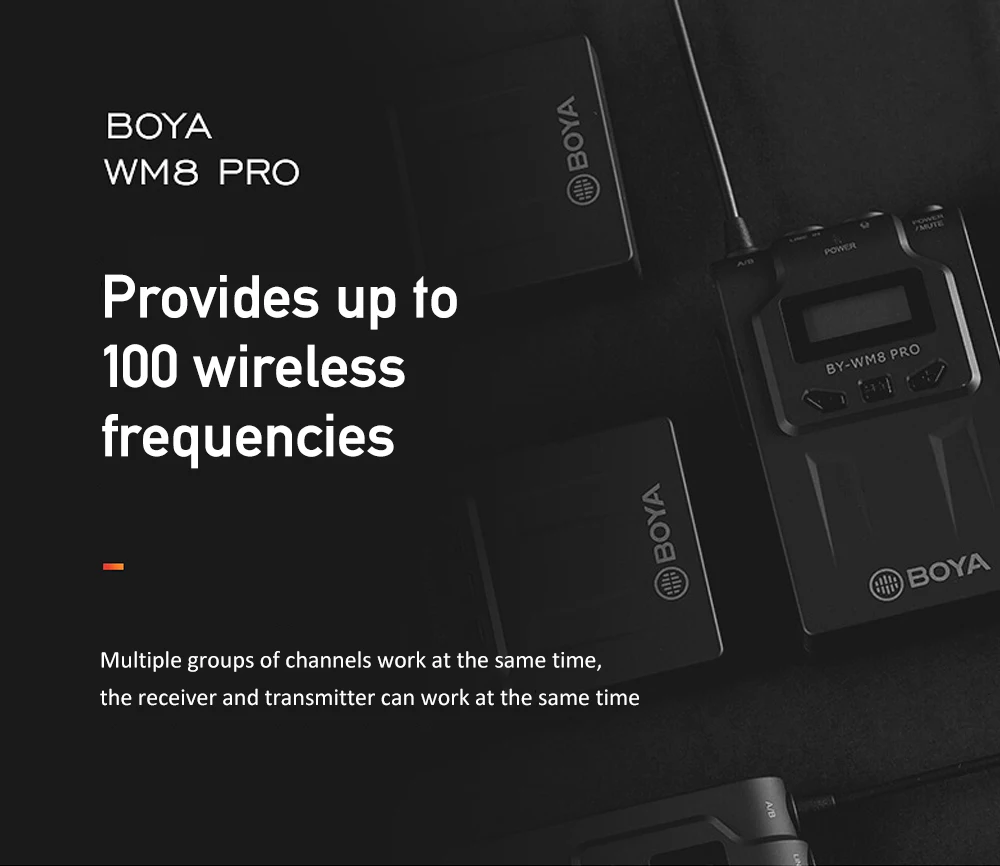

Multiple groups of channels work at the same time, the receiver and transmitter can work at the same time

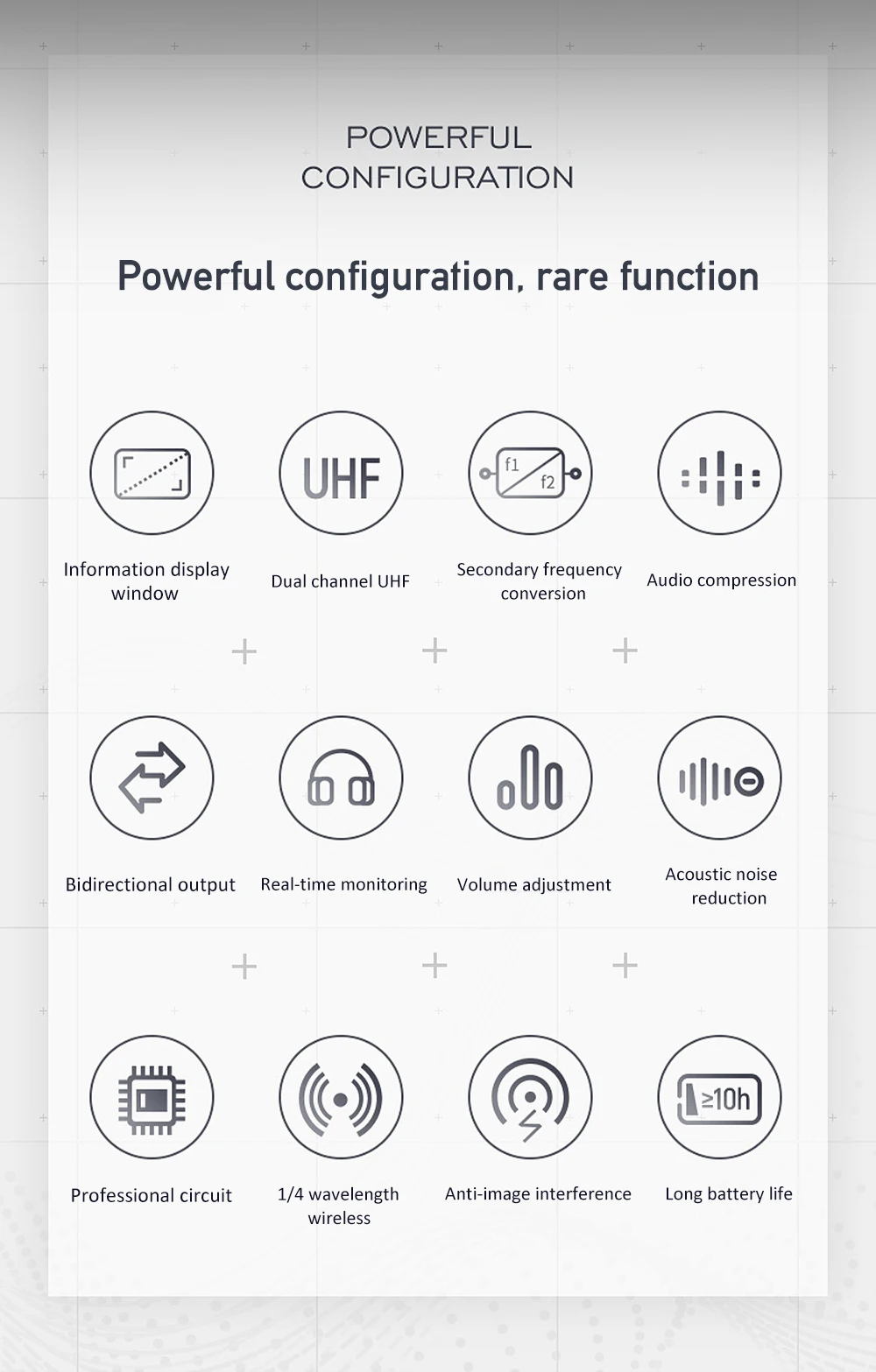

Powerful configuration, rare function

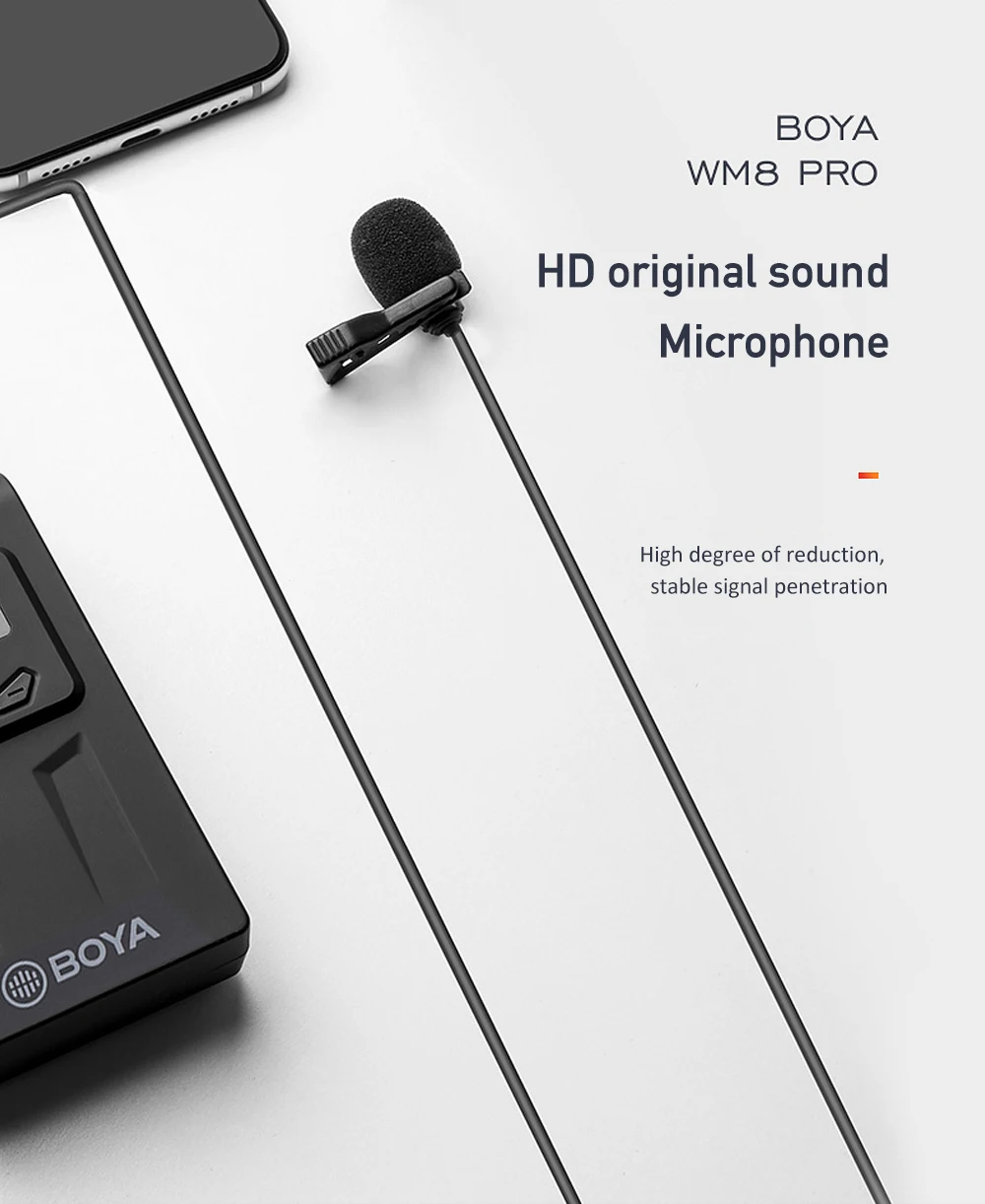

HD acoustic microphone Real-time monitoring function
Digital companding
Up to 48 selectable channels
Dual-channel receiver
Up to 32 MHz of transmission bandwidth
Easy and flexible wireless synchronization between transmitter and receiver via infrared
User-friendly menu operation
Muting function
Locked plugs avoid accidental disconnection
Transmission range up to 300′
BOYA BY-WM6-II Specs
System
| Wireless Transmission | Analog UHF |
| Number of RF Channels | 48 |
| Included Transmitters | 1 x Bodypack |
| Diversity | Antenna Diversity |
| RF Frequency Band | A: 556.7 to 575.9 MHz B: 576.3 to 595.6 MHz |
| RF Bandwidth | Up to 32 MHz |
| Max Operating Range | 328.1′ / 100 m (Typical) |
| Max Microphones per Band | 1 |
| Encryption | None |
Receiver
| Form Factor | Camera-Mount |
| Mounting Options | Shoe-Mount |
| Antenna | 2 x 1/4 Wave Wire, Fixed (Top-Mount) |
| Number of Audio Channels | 2 |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Line Output 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 4 Hours |
| Display & Indicators | 1 x Backlit LCD |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2.6 x 8.2 x 1.1″ / 67 x 208 x 29 mm |
| Weight | 3.2 oz / 90 g (without Batteries) |
Transmitter
| Form Factor | Bodypack |
| RF Output Power | Up to 10 mW |
| Audio I/O | 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Input (Lockable) 1 x 1/8″ / 3.5 mm TRS Female Unbalanced Input |
| Audio Input Level | -60 dBV (at 0 dB Gain) |
| Auto-Level Control | No |
| Frequency Response | 20 Hz to 20 kHz |
| Antenna | 1 x 1/4 Wave Wire, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Not Included) |
| Approx. Battery Life | 6 Hours |
| Display & Indicators | 1 x Backlit LCD |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | 14 to 131°F / -10 to 55°C |
| Dimensions | 2.6 x 8.2 x 1.1″ / 67 x 208 x 29 mm |
| Weight | 3.2 oz / 90 g (without Batteries) |
Microphone
| Form Factor | Lavalier |
| Color | Black |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 35 Hz to 18 kHz |
| SNR | 74 dB |
| Sensitivity | 30 dB at 1 kHz |
| Output Connectors | 1 x 1/8″ / 3.5 mm TRS Male Unbalanced (Lockable) |
| Cable Length | 3.94′ / 1.2 m |
Packaging Info
| Package Weight | 1.525 lb |
| Box Dimensions (LxWxH) | 9.3 x 8.3 x 2″ |
Additional Information
| Weight | 1.525 kg |
|---|---|
| Dimensions | 9.3 × 8.3 × 2 cm |
