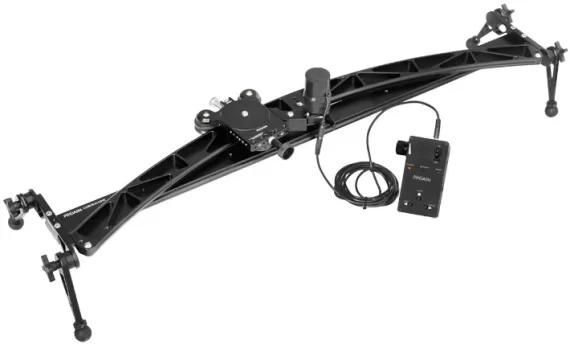

Proaim 3ft Curve-N-Line Video Camera Slider with Motion Control System

Dual Action Slider with motion control capabilities in itProaim launches its new ready-to-run

travel & adventure package, curve-N Line Slider with motion control system. This dual action slider

is a combination of both straight and curved tracks into a single slider body. This dual-action design

lets you take traditional camera slider moves along with dynamic parabolic moves simply by flipping

the slider This versatile & compact system lets you create dynamic video. The Motion control system

centers around the powerful motor, which proves smooth or incremental movements, and works with

most DLSR, mirrorless, and digital cinema cameras. With the controller, you can program precise

camera movements for interviews, establishing shots, and other camera movements.

FAST QUICK RELEASE CONNECTIVITY:
Robust quick release plate gets connected to straight and curved tracks of slider quickly without removing the end feet.

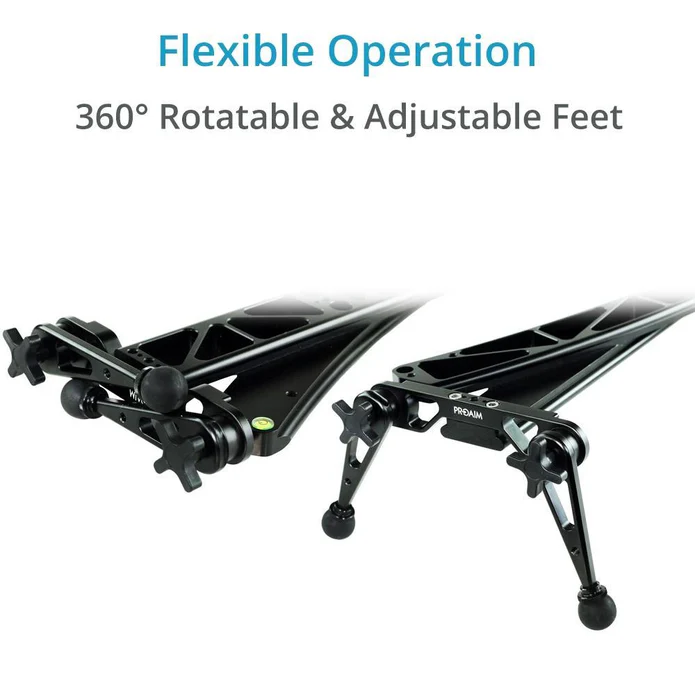

FOLDABLE AND REMOVABLE LEGS:
360 degree rotation of feet with fine adjustability ensures quick flipping of slider and makes it a breeze to travel .

MOTION CONTROL SYSTEM:
Motion control system specially designed for Curve & line slider. This versatile & compact system when added

to the slider lets you create dynamic video and photography sequences with fluid motorized slides.

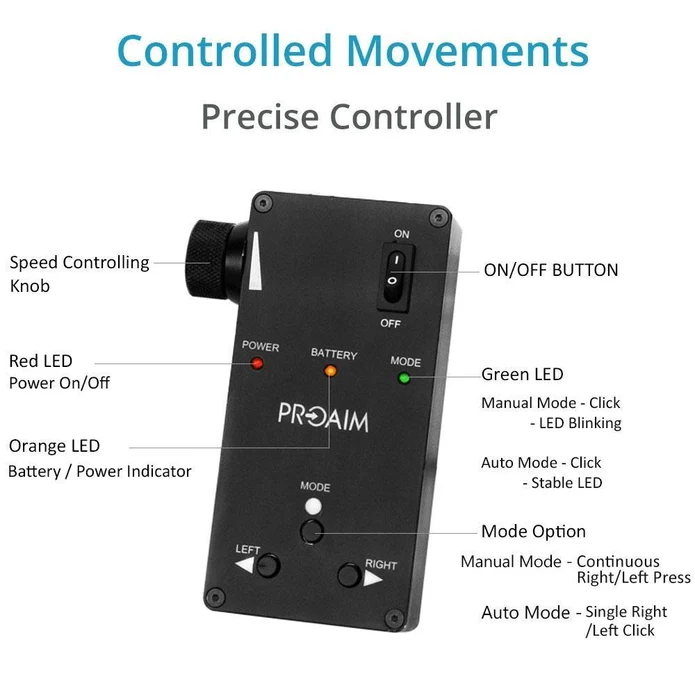

PRECISE CONTROLLER:
Complete control over movement
With the controller, you can program precise camera movements for interviews, establishing shots,

and other camera movements.

POWERFUL MOTOR & HIGH END BEARINGS:
Using high end sealed bearings, carriage glides effortlessly for extra smooth shots & Powerful motor

proves smooth or incremental movements, and works with most DLSR, mirrorless, and digital cinema cameras.

SPECIFICATION:

3ft CURVE-N-LINE SLIDER

– Weighing Capacity on Ground: 25kg/55 lb
– Length: 3ft
– Product Weight: 2.350kg/5.17lb
– Outer radius of curve slider: 38.32 inches
– Inner radius of curve slider: 36.33 inches
– Travel angle: 58 degree
– Folded Height: 1.5 inches
– Construction: High-Grade Aluminum
– Tripod Mounting Threads: 1/4″-20 & 3/8″-16
– Camera Mounting Screws: 1/4″-20 & 3/8″-16

MOTION CONTROL SYSTEM

– Load Capacity : 11 lb/ 5kg
– Product Weight : 3.5lb/1.60g
– Max Speed Travel: 18 sec
– Min Speed Travel: 3.75 Min
– Noise level of Motor is: <40dB
– Construction : Aluminum
– Geared Motor (Made in Taiwan) 30RPM 12V
– Battery Input Power: 7.2-12V DC

IN THE BOX:

Proaim 3ft Curve-N-Line Camera Video Slider

Proaim Motion Control System (P-MC-CNL)

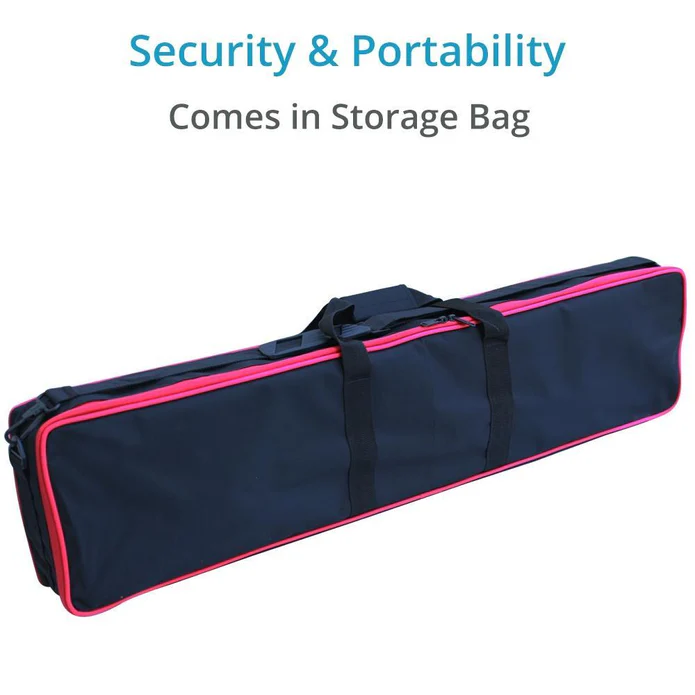

Storage Case

12v Adapter
