Nanlite Forza 720B Bi-Color LED Monolight

Overview

The Forza 720B Bi-Color LED Monolight from Nanlite is made to fill production roles usually handled by powerful HMI lights in a much more lightweight, compact, and heat-efficient package, with the added benefit of adjustable bi-color control. The COB LED component can deliver an immense amount of accurate, high CRI and TLCI light with a rated power of 800 watts, while being nimble enough to dim from 0 to 100% in 0.1% increments. It offers a suite of wireless control options, for single lamp operation or more complex multi-light setups. Twelve built-in practical effects can create complicated lighting scenarios in seconds, which can be customized and saved as quickly recallable presets with the free NANLINK mobile app.

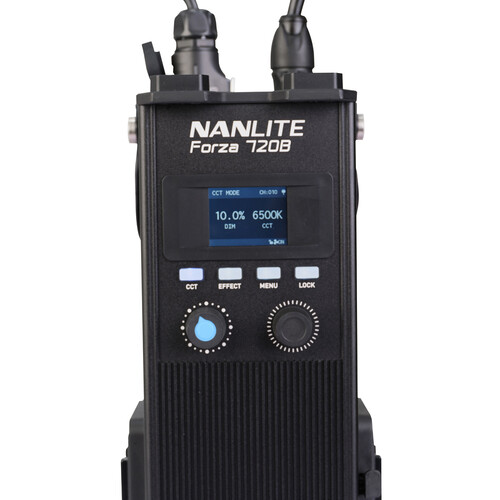

This high-performance light is easy to handle, mount, and position, but easily controlled by analog selectors on the separate control unit. The control unit also acts as a multi-voltage power supply, and features two integrated V-mount battery plates.

High Color Accuracy

With an average CRI of 96 and TLCI of 97, the Forza 720B provides a high level of accuracy for precise color reproduction.

Suite of Wireless Control Options

The powerful NANLINK mobile app can be used via built-in Bluetooth. The separately available WS-TB-1 transmitter box can be paired with the built-in 2.4G receiver for more elaborate setups. Advanced applications can utilize DMX and RDM control through XLR input and output.

Built-In Effects & Unlimited Customization

 12 built-in practical effects allow the creation of complicated lighting scenarios in seconds, and all of the effects can be deeply customized and saved as quickly recallable presets with the free NANLINK mobile app. the built-in practical effects include CCT loop, INT loop, flash, pulse, storm, TV, paparazzi, candle/fire, bad bulb, firework, explosion and welding.

Bowens S-Type Reflector Mount The Forza 720B monolight features the very commMultivoltage AC or V-Mount Battery Operation The Forza 720B can run on a standard AC outlet anywhere in the world, with a AC input range of 100 to 240 VAC. It can also operate in locations without AC power available by using two 14.8V or 26V V-Mount batteries, available separately.

High Battery-Powered Output

Similar lights from other brands are typically limited to 50% or less of brightness when operating on battery power. The Forza 720B provide up to 65% output for greater brightness on location.

Powered USB A-Type Port

A USB Type-A port provides power to external devices like DMX receivers, and also acts as an interface for product firmware updates.

Full-Featured Yoke

The yoke mount is compatible with both 5/8″ baby pins and 1 & 1/8″ junior pins. The yoke itself has an umbrella holder and a durable, single-sided lock for quick adjustment.

Specification

• Light Fixture
• Color Temperature: 2700 to 6500K
• Color Accuracy Standard: CRI 95 TLCI 96
• Cooling System  : Fan
• Dimming : Yes 0 to 100% (Continuous)
• Display  LCD
• Housing Material : Metal
• Beam Angle : 120° (Unmodified)
• 55° (with Reflector)
• Fixture Dimensions: Fixture: 20.4 x 9.0 x 5.6″ / 51.8 x 22.9 x 14.2 cm
• Fixture Weight:  11.7 lb / 5.3 kg

Connectors

Battery Plate: 2 x V-Mount

Power Input Connection: Proprietary

Service Connection: USB Type-A

Lens

Reflector Mount: Bowens S-Type

Mounting

Fixture Mount:   5/8″ Stud

Yoke

Yoke Material:   Metal

Yoke Type:  Yoke/Bracket

Remote Operation

Remote Control Type:     App, DMX, Proprietary Wireless, Wi-Fi

 Power

AC Input Power: 100 to 240 VAC, 50 / 60 Hz

DC Input Power: 48 VDC at 16.67 A

Power Source:    Ballast, External Battery

Max Power Consumption: 800 W

Power Pass-Thru: No

Power Supply

Power Supply Dimensions: 6.1 x 13.0 x 5.5″ / 15.5 x 33.0 x 14.0 cm

Power Supply Weight: 9.3 lb / 4.2 kg

 Physical

 Certifications:    CE

*as per Manufacturer

Operating Temperature: 77°F / 45°C

Packaging Info

Package Weight : 35.78 lb

Box Dimensions (LxWxH): 24.7 x 15.2 x 13.2″

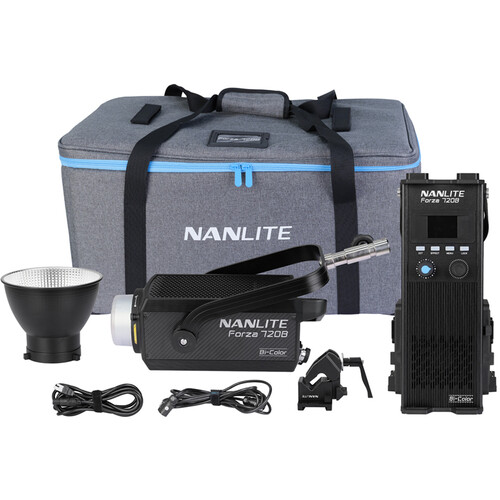

In the Box

• Nanlite Forza 720B Bi-Color LED Monolight
• Forza 720B Bi-Color LED Monolight Head
• Control Unit
• AC Power Cable (14.76′)
• Connecting Cable (16.4′)
• Quick-Release Clamp
• Reflector
• Protective COB Cap

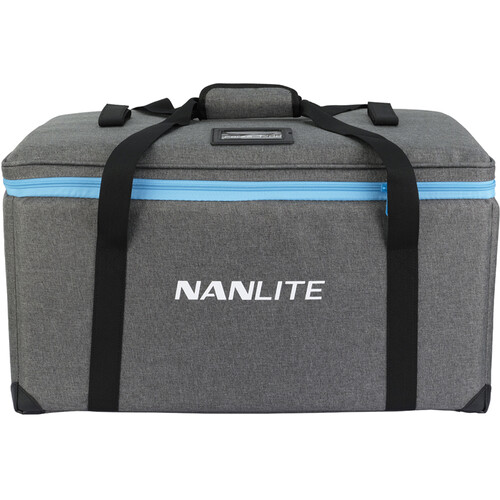

• Carrying Bag
• Limited 2-Year Warranty, Extends to 3-Year with Online Registration
